Coltec stock camshafts for MG, Ford and Vauxhall engines and can supply for other makes. Our camshafts have been used for almost every type of racing engine, powering cars to success in international rallies. A regrinding and heat treatment service is available for all makes. The Tornado range is designed for upgrading the power of normal road engines and can usually replace the original without additional modifications. The Tornado Camshafts are available for most production car engines.

Please select engine type from menu bar above for technical data on camshafts to match your requirements. If required type not listed please contact Coltec for assistance.

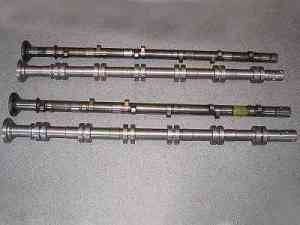

cam pic1 cam pic1





Ford Pinto SHOC
Type Description Power* Operating Range (RPM) Torque* Peak (RPM) BHP* Peak (RPM) Achievable*
BHP/Litre		 Timing Figures (degrees) Valve Lift (inches) Inlet / Exhaust Period @ Cranckshaft (degrees) inlet / Exhaust Follower Type
4011 (83-91) Fast Road 1500/6000 4000 5200 54.5 30/66 72/24 .422 276
4011A Fast Road 2000/6400 4500 5950 79 40/76 30/62 .443 / .442 296 / 272
4011B Road/Rally 2400/7000 4750 6200 83 28/90 84/25 .419 298 / 289
4011C Rally 3200/8000 5000 6900 88 51/89 68/42 .472 320/290
4011F Rally/Race 3500/8200 5250 7230 90 54/80 88/44 .475 314 / 312
4011FHL Rally/Hillclimb 3600/8400 5650 7300 92 54/80 88/44 .539 314 / 312
4011D (665) Race 3770/8500 6000 7425 94 60/104 79/53 .539 344 / 312
4011T (M15) Turbo 1500/6500 4000 5500 ** 29/65 56/20 .467 / .462 274 / 256

** Note Boost Pressure Related
509T Fast Road 1500/6000 4200 5500 75 35/75 75/35 .415 290 For Use With Holbay Roller Rocker Assy only
509M Rally 3200/8000 5100 6900 98 42.5/77.5 77.5/42.5 .415 300
509R Race 3700/8500 5950 7400 101 56/76 74/54 .437 312/308
PR62 Race 3750/8500 6000 7600 104 60/104 73/59 .512 / .501 344 / 312

* N.B. These figures relate to a 2.0 litre engine.
Power peaks and operating range will change with alternative capacities.

BHP / litre figures should be multiplied by engine capacity to arrive at feasible power targets;
i.e Type 4011C camshaft in a 2.1 litre engine would be:- 88*2.1 = 184.8 BHP.









Ford Crossflow OHV
Type Description Power* Operating Range (RPM) Torque* Peak (RPM) BHP* Peak (RPM) Achievable*
BHP/Litre		 Timing Figures (degrees) Valve Lift (inches) Inlet / Exhaust Period @ Cranckshaft (degrees) inlet / Exhaust Follower Type
R90 Fast Road 1100/6200 4100 5600 65.6 31/61 61/31 .353 272
R120 Fast Road/ Rally 1500/6800 4500 6200 75 37/67 71/33 .435 284
K3A Rally/ Race 3200/8000 5900 7400 90.6 58/88 74/50 .411 326 / 304
747 Rally/ Race 3150/8000 5500 7000 88 56/76 76/56 .448 312
658 Race 4500/10800 7200 8300 102 66/88 88/66 .421 334
700 Race 6000/9750 7250 8450 106 68/90 90/68 .421 338
751 Race 6150/9400 7300 8470 110 68/90 90/68 .445 338

* N.B. These figures relate to a 1.6 litre engine.
Power peaks and operating range will change with alternative capacities.

BHP / litre figures should be multiplied by engine capacity to arrive at feasible power targets;
i.e Type 658 camshaft in a 1700cc engine would be:- 102*1.7 =187 BHP.









Ford CVH
Type Description Power* Operating Range (RPM) Torque* Peak (RPM) BHP* Peak (RPM) Achievable*
BHP/Litre		 Timing Figures (degrees) Valve Lift (inches) Inlet / Exhaust Period @ Cranckshaft (degrees) inlet / Exhaust Follower Type
101LCH Fast Road 1100/6200 4000 5500 66 26/66 66/26 .428 272 Hydraulic
HT41 Fast Road 1100/6500 4250 5750 67.5 32/72 72/32 .475 284 Solid
R120/ CVH35 Road/Rally 1450/6800 4700 6200 77 37/67 71/33 .475 284 Solid
A78 GroupA 2500/8000 5150 7400 90 58/88 74/50 .448 326 / 304 Solid
658 Race 4400/9800 6800 8000 106 66/88 88/66 .460 334 Solid
700 Race 5950/9800 7150 8250 107.5 68/90 90/68 .460 338 Solid
751 Race 6100/9750 7200 8430 112 68/90 90/68 .486 338 Solid

* N.B. These figures relate to a 1.6 litre engine.
Power peaks and operating range will change with alternative capacities.

BHP / litre figures should be multiplied by engine capacity to arrive at feasible power targets;
i.e Type 658 camshaft in a 1300cc engine would be:- 106*1.3 = 137.8 BHP.









Vauxhall SHOC Slipper follower FWD
Type Description Power* Operating Range (RPM) Torque* Peak (RPM) BHP* Peak (RPM) Achievable*
BHP/Litre		 Timing Figures (degrees) Valve Lift (inches) Inlet / Exhaust Period @ Cranckshaft (degrees) inlet / Exhaust Follower Type
120H13 Fast Road 1100/6200 4100 5650 68 25/63 63/25 .437 270 Hydraulic
95H16 Fast Road 1100/6000 4000 5600 66 25/63 63/25 .437 270 Hydraulic
93H Fast Road 1100/6000 4200 5550 66 30/66 66/30 .455 276 Hydraulic
58LHC Road/Rally 2300/7000 4600 6000 82 36/80 68/24 .441 / .421 296 / 272 Solid
68LHC Rally/Race 2800/7400 5200 6900 89 54/80 88/44 .472 314 / 312 Solid
118 (group A) Rally/Race 2800/7200 5200 6800 87 54/80 88/44 .472 314 / 312 Hydraulic

120H13, 95H16, 93H are Fast Road cams for 1.3, 1.6 & 1.8 litre engines respectively
*N.B. For competition profiles these figures relate to the 1.8 litre engine.
Power peaks and operating range will change with alternative capacities.

BHP / litre figures should be multiplied by engine capacity to arrive at feasible power targets;
i.e Type 58LHC camshaft in a 1.8 litre engine would be:- 82*1.8 = 147.6 BHP.









Various engines makes
Application Ref. No. Timing Figures (Degrees) Valve Lift (inches) Inlet/Exhaust Cam Lift (inches) Inlet/Exhaust Degrees Period at Crankshaft
Alfa Romeo 1.8/2.0 T/C 59A 30/70  70/30 .409 .409 280
Alfa Sud 1.3 105LH 22/56  47/13 .415 / .377 .415 / .377 258/240
Alfa Sud 1.5 099 45/81  81/45 .388 .388 306
Audi 5 cyl. HT42 37/81  82/37 .440 .440 298
Austin/Rover 'A' series 87LHC 10/50  51/21 .318 .250 240/252
BMW2002 SF97 30/69  67/28 .398 .283 279/275
Chrysler 1725 E128 35/60  60/30 .465 .330 275/270
Colt Sapporo 23LH 43/73  80/36 .435 .318 296
Datsun L18 HT16 22/58  60/20 .442 .310 260
Datsun 240Z 98RH 20/60  60/20 .458 .310 260
Fiat X19 HT17 28/72  69/32 .409 .409 280
Fiat 128 1300 OHC HT18 24/68  64/28 .389 .389 272
Fiat T/C 59AL 30/70  70/30 .409 .409 280
Ford OHV R90 31/61  61/31 .353 .232 300
Ford OHC (Pinto) 83-91 30/66  72/24 .422 .264 276
Ford CVH Hydraulic 101LCH 26/66  66/26 .428 .258 272
Ford CVH Solid HT41 32/72  72/32 .475 .286 284
Cosworth Sierra Solid LK15S 34/74  74/34 .389 .389 288
Cosworth Sierra Hydraulic LK15H 34/74  74/34 .389 .389 288
Ford V6 2.8 litre 35 39/65  81/35 .414 .286 284
Ford V6 3.0 litre 34A 21/55  55/21 .383 .295 256
Honda Accord (Early) 100LC 33/69  69/33 .374 .262 282
Honda Accord (Late) 100RH 37/73  73/37 .388 .272 290
Jaguar 6 & V12 59AJ 32/68  68/32 .409 .409 280
Lancia T/C 59AL 30/70  70/30 .409 .409 280
Lotus T/C LK1 34/74  74/34 .389 .389 288
Mitsubishi Lancer Turbo 98RH 26/64  64/26 .428 .318 270
Opel 4 & 6 cyl. RWD hydraulic OP111 41/71  75/37 .429 .268 292
Opel 4 & 6 cyl. RWD Solid OP35 37/67  71/33 .458 .286 284
Opel 1.3, 1.6 & 1.8 SHOC Hydraulic Follower FWD. See Vauxhall
Renault 1647 OHV 86RH 35/75  75/35 .421 .269 300
Renault V6 HT34 22/58  58/22 .330 .234 260
Renault 1995 OHC HT33 24/64  70/18 .351 .249 268
Rover V8 3.5 111R 29/73  73/39 .429 .268 292
Saab 2 litre SOHC 61RH 35/73  73/35 .475 .475 288
Subaru 16/18 HT38/HT35 33/66  70/29 .460 .265 279
Triumph Spitfire 87LH 12/60  60/12 .389 .268 252
Triumph Dolomite Sprint LK1 34/74  74/34 .389 .389 288
Toyota 1600 T/C 59A 34/66  66/34 .409 .409 280
Vauxhall SOHC FWD. Hydraulic 1.3 120H13 25/63  63/25 .437 .275 270
1.6 95H16 25/63  63/25 .437 .275 270
1.8 93H 30/66  66/30 .455 .286 276
Volvo B20/B30 35LC 33/71  71/33 .411 .286 284
Volvo B19/B21 59LH 28/72  69/32 .409 .409 280
Volvo V6 HT34 22/58  58/22 .330 .234 260
Volkswagen Golf SOHC solid HT37 30/70  70/30 .409 .409 280
Volkswagen 1.8i Hydraulic 117 31.5/71.5  71.5/31.5 .435 .435 283
Volkswagen 1.8i Solid 37RH 32.5/70.5  70.5/32.5 .445 .445 283

N.B. Some profiles are not suitable for use with automatic gearboxes.
New followers must always be used. Valve timings and lifts, where shown, are for guidance only.
Use data sheet supplied with camshaft, together with standard timing marks.
HOLBAY TORNADO camshafts have no need for a vernier timing pulley.
